Power Amplifier MMICs
MC120-2
5.0 – 18.0 GHz GaAs MMIC Power Amplifier
Description
МС120 is wideband GaAs power amplifier with a small signal gain of 11 dB. This device is well suited for fiber optic, microwave radio, radar systems, telecom infrastructure, test instrumentation and VSAT applications
Features:
- Operating Frequency: ΔF= 2 to 18 GHz
- Small Signal Gain: Gss = 11 dB
- Operating Voltage: VDD =8 V
- RF Output Power Р-1: Р-1= 30 dBm

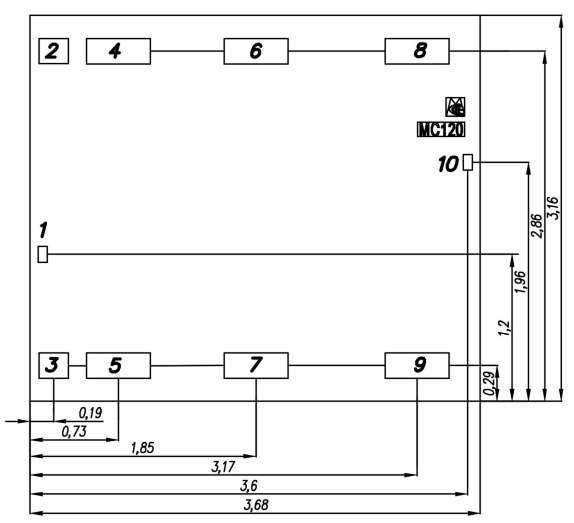

- Die Size: 3.68 х 3.16 х 0.1 mm3
Electrical Specifications (VDD= 8 V, Vg= -0,81 V, IDD= 400 mA, Т=25°С)
|
Parameter |
Symbol |
Units |
Specification |
Condition |
|
|---|---|---|---|---|---|
|
Min |
Max |
||||
|
Operating Frequency |
ΔF |
GHz |
5 |
18 |
|
|
Return Loss input / output |
RL |
dB |
– |
-12 / -12 |
|
|
Small Signal Gain |
Gss |
dB |
8 |
12 |
|
|
Operating Voltage |
VDD |
V |
7 |
8 |
|
|
Operating Current |
IDD |
mA |
– |
400 |
|
|
RF Output Power Р-1 |
Р-1 |
dBm |
28 |
– |
F=5 GHz |
|
29.5 |
– |
F=10 GHz |
|||
|
31 |
– |
F=18 GHz |
|||
