Microwave Systems JSC
SOLID-STATE MICROWAVE AMPLIFIERS AND SUBSYSTEMS

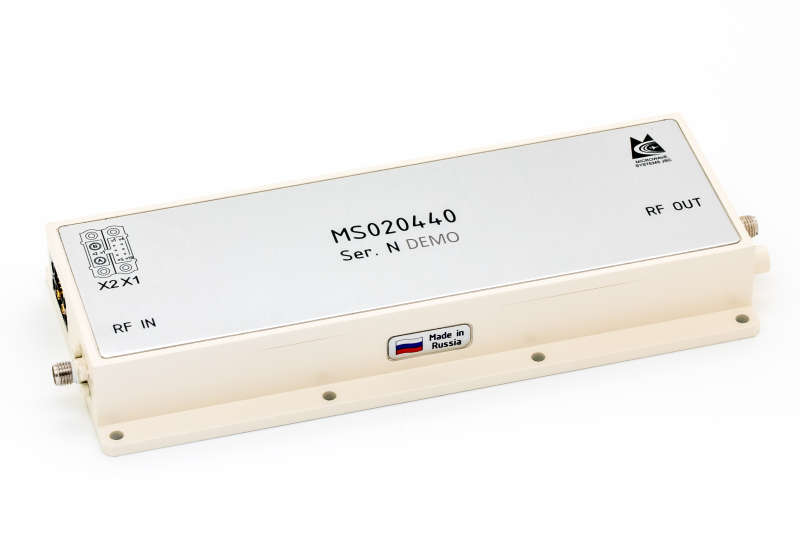

MS020440

Description

Model MS020440 is an octave high power amplifier operating from 2 to 4 GHz range with 46  Watts typical output power. It provides 56 dB of small signal gain with flatness ±1.5 dB. MS020440 uses advanced GaN microwave device technology and provides long term reliability and high ruggedness. Hermetically sealed package implements reliable operation in various harsh environments.

Features:

  • Frequency range 2-4 GHz
  • 40 Watts RF Output Power
  • 50 Ohm Input / Output Impedance
  • Digital 5 – bit gain control (0.9dB-27.9dB)
  • Built-in output power detector
  • High switching speed (300 ns)
  • Gain – temperature compensation

Applications:

  • Communications Systems
  • Test Instrumentation
  • Broadband RF Telemetry
  • Point To Point Radio
  • Fiber Optics




Documentation

Product Datasheet

Operation Manual
