Power Amplifier MMICs
MC0014
2.0 – 20.0 GHz GaAs MMIC Power Amplifier
Description
МС0014 is wideband GaAs power amplifier with a small signal gain of 11 dB. This device is well suited for fiber optic, microwave radio, radar systems, telecom infrastructure, test instrumentation and VSAT applications.
Features:
- Operating Frequency: ΔF= 2 to 20 GHz
- Small Signal Gain: Gss = 11 dB
- Operating Voltage: VDC =8 V
- RF Output Power Р-1: Р-1= 24 dBm

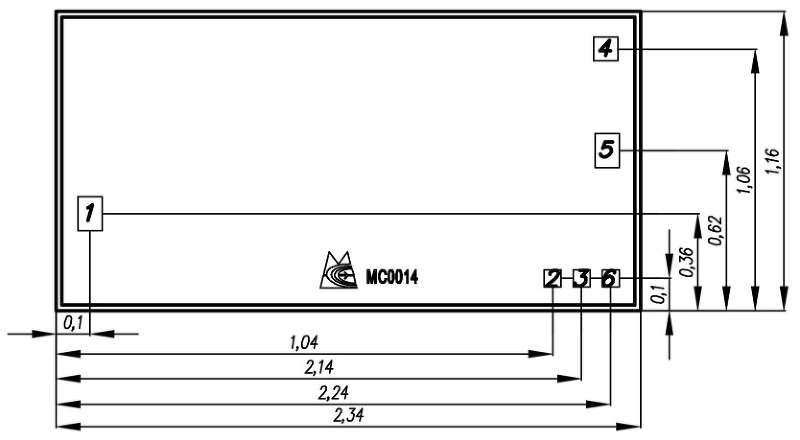

- Die Size 2.34 х 1.16 х 0.1 mm3
Electrical Specifications (VDC=8 V, I0=270 mА, Т=25°С)
|
Parameter |
Symbol |
Units |
Min |
Max |
Condition |
|---|---|---|---|---|---|
|
Operating Frequency |
ΔF |
GHz |
2 |
20 |
|
|
Return Loss input / output |
RL |
– |
-6 / -12 |
– |
|
|
Small Signal Gain |
Gss |
dB |
11 |
13 |
|
|
Operating Voltage |
VDC |
V |
5 |
8 |
|
|
Operating Current |
IDD |
mA |
– |
320 |
|
|
RF Output Power Р-1 |
Р-1 |
dBm |
24 |
– |
F=2 GHz |
|
24 |
– |
F=10 GHz |
|||
|
22 |
– |
F=20 GHz |
