Power Amplifier MMICs
MC4000
Description
МС4000 is wideband GaAs power amplifier with a small signal gain of 9 dB. This device is well suited for fiber optic, microwave radio, radar systems, telecom infrastructure, test instrumentation and VSAT applications.
Features:
- Operating Frequency: ΔF= 2 to 18 GHz
- Small Signal Gain: Gss = 9 dB
- Operating Voltage: VDC =8 V
- RF Output Power Р-1: Р-1= 17 dBm

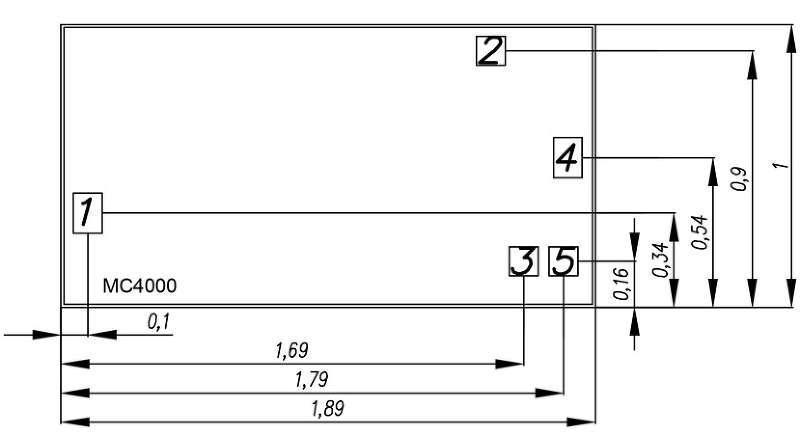

- Die Size: 1.89 х 1 х 0.1 mm3
Electrical Specifications @ VDC=8 V, I0=140 mA, Т=25°С
|
Parameter |
Symbol |
Units |
Min |
Max |
Condition |
|---|---|---|---|---|---|
|
Operating Frequency |
ΔF |
GHz |
2 |
18 |
|
|
Return Loss input / output |
RL |
– |
– |
-9 / -12 |
|
|
Small Signal Gain |
Gss |
dB |
8 |
9.5 |
|
|
Operating Voltage |
VDC |
V |
5 |
8 |
|
|
Operating Current |
IDD |
mA |
– |
170 |
|
|
RF Output Power Р-1 |
Р-1 |
dBm |
16.5 |
– |
F=2 GHz |
|
17 |
– |
F=9 GHz |
|||
|
16.5 |
– |
F=18 GHz |
