Microwave Systems JSC
SOLID-STATE MICROWAVE AMPLIFIERS AND SUBSYSTEMS

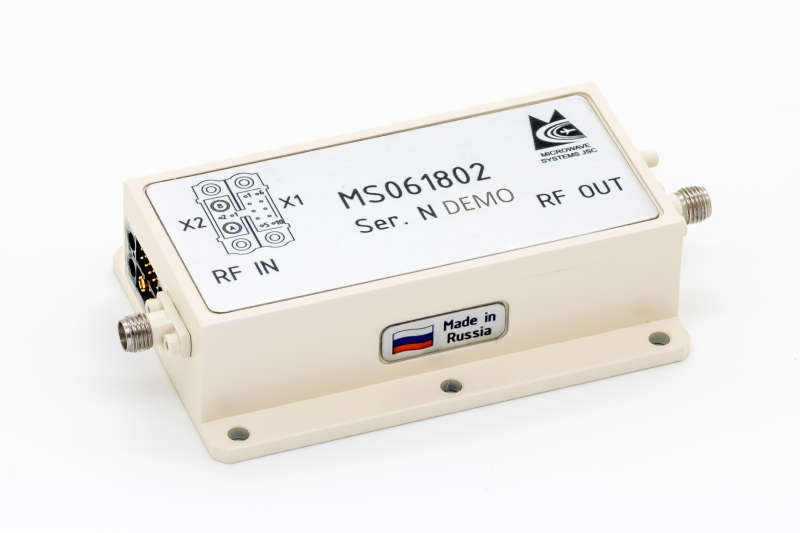

MS061802

Description

Model MS061802 is a multi-octave high power amplifier operating from 6 to 18 GHz range with 2 Watts typical output power. It provides 37 dB of small signal gain with flatness ±1.5 dB. MS061802 uses advanced GaAs microwave device technology and provides long term reliability and high ruggedness. Hermetically sealed package implements reliable operation in various harsh environments.

Features:

  • Frequency range 6-18 GHz
  • GaAs technology
  • 2 Watts RF Output Power
  • 50 Ohm Input / Output Impedance
  • Digital 5 – bit gain control (0.9dB-27.9dB)
  • Built-in output power detector
  • High switching speed (300 ns)
  • Gain – temperature compensation
  • High reliability and ruggedness

Applications:

  • Communications Systems
  • Test Instrumentation
  • Broadband RF Telemetry
  • Point To Point Radio
  • Fiber Optics




Documentation

Product Datasheet

Operation Manual
