Microwave Systems JSC
SOLID-STATE MICROWAVE AMPLIFIERS AND SUBSYSTEMS

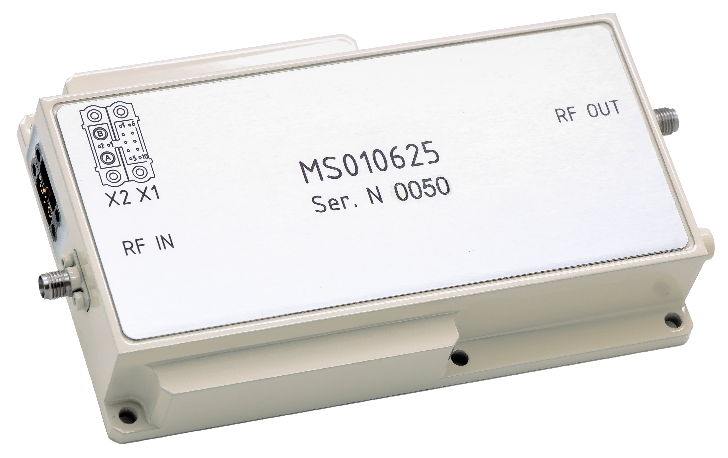

MS010625

Description

Model MS010625 is a multi-octave high power amplifier operating from 1 to 6 GHz range with 30 Watts typical output power. It provides 54 dB of small signal gain with flatness ±2.0 dB. MS010625 uses advanced GaN microwave device technology and provides long term reliability and high ruggedness. Hermetically sealed package implements reliable operation in various harsh environments.

Features:

  • Wideband high power amplifier
  • Frequency range 1-6 GHz
  • GaN technology
  • 30 W  RF Output Power (typ)
  • 50 Ohm Input / Output Impedance
  • Digital 5 – bit gain control (1dB-31dB)
  • Built-in output power detector
  • High switching speed (300 ns)
  • Gain – temperature compensation

Applications:

  • Communications Systems
  • Test Instrumentation
  • Broadband RF Telemetry
  • Point To Point Radio
  • Fiber Optics




Documentation

Product Datasheet

Operation Manual

More Information

Мощные широкополосные усилители. MS010625

Публикации. Усилитель СВЧ мощности диапазона 1—6 ГГц с выходной мощностью 30 Вт на основе GaN транзисторных балансных схем

Publications. 1-6 GHz 35W Balanced GaN-HEMT Power Amplifier with Innovative Quadrature Couplers

Публикации. Балансный GAN-HEMT усилитель с выходной мощностью 35 Вт в диапазоне частот 1-6 ГГц с инновационными квадратурными мостами
